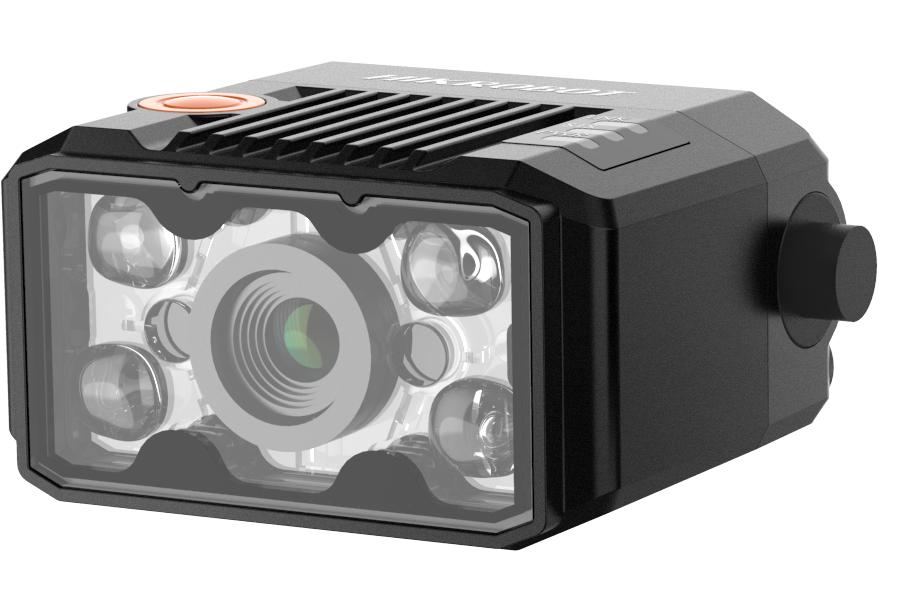

Считыватель кодов Hikrobot ID2000, MV-ID2004M-06S-RBN

Описание товара

Считыватели кодов Hikrobot серии ID2000

Ключевые особенности:

Компактная конструкция и небольшой размер.
Оснащен авиационным разъемом для подключения одного кабеля.
Оснащен светодиодной подсветкой для облегчения наведения.

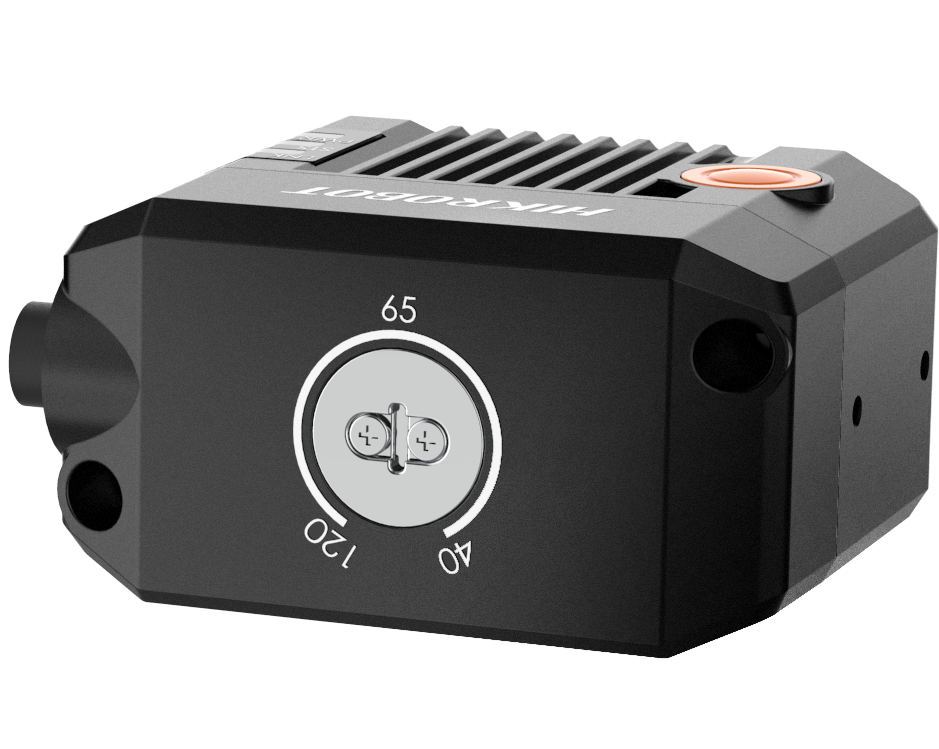

Оснащен ручкой фокусировки для ручной настройки фокуса.
Оснащен несколькими интерфейсами ввода-вывода и интерфейсом подключения питания.

Спецификация:

Model	Product Model	MV-ID2004M-06S-RBN
Model	Type	6mm focal length 0.4MP Ultra-Compact Industrial Code Reader
Performance	Symbologies	1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE 2-dimensional codes: QR Code, Data Matrix
	Max. frame rate	60 fps
	Max. reading speed	62 codes/sec
	Sensor type	CMOS, global shutter
	Pixel size	6.9 μm × 6.9 μm
	Sensor size	1/2.9"
	Resolution	704 × 540
	Exposure time	16 μs to 1 sec
	Gain	0 dB to 15 dB
	Mono/color	Mono
	Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, UDP, Fins
Electrical feature	Data interface	Fast Ethernet (100 Mbit/s)
	Digital I/O	17-pin M12 connector provides power and I/O, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), bi-directional non-isolated I/O × 2 (Line 0/1), and RS-232 × 1. Device trigger via pressing button on side supported.
	Power supply	12 VDC to 24 VDC
	Max. power consumption	Approx. 3.8 W @ 24 VDC
Mechanical	Focal length	6.72 mm
	Lens mount	M10-mount, adjusting focus manually supported
	Working distance	40 mm to 120 mm
	Ambient illumination	0 lux to 50000 lux
	Light source	Red
	Aiming system	Green LED
	Dimension	46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0")
	Indicator	Power indicator (PWR), network indicator (LNK), and status indicator (STS)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Ingress protection	IP65
	Weight	Approx. 160 g (0.4 lb.)
	Humidity	20% RH to 95% RH (no condensation)
General	Client software	IDMVS
General	Certification	CE, RoHS, KC

Другие модели серии:

Product model	Resolution	Focal length	Max. reading speed	Max. frame rate	Certification	Product status	Comparison

MV-ID2004M-06S-RBN	704 × 540	6.72 mm	62 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2004M-06S-WBN	704 × 540	6.72 mm	62 codes/sec	60.0 fps	CE, RoHS, KC	Delisting Preparation
MV-ID2004M-06S-WBN-U	704 × 540	6.72 mm	38 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2004M-16T-RBN	704 × 540	16 mm	45 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-03N-RBN	1280 × 1024	2.45 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-03N-RBP	1280 × 1024	2.45 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05-RBN	1280 × 1024	4.7 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05-RBP	1280 × 1024	4.7 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05-WBN	1280 × 1024	4.7 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05-WBP	1280 × 1024	4.7 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05-RBN-U	1280 × 1024	4.7 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05-WBP-U	1280 × 1024	4.7 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05N-RBP	1280 × 1024	4.7 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05N-RBN-U	1280 × 1024	4.7 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05H-RBN	1280 × 1024	4.7 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05H-RBP	1280 × 1024	4.7 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05H-RBN-U	1280 × 1024	4.7 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013M-06S-RBN	1280 × 1024	6.72 mm	72 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2013M-06S-RBP	1280 × 1024	6.72 mm	72 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2013M-06S-BBN	1280 × 1024	6.72 mm	72 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2013M-06S-WBN	1280 × 1024	6.72 mm	72 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2013M-06S-WBP	1280 × 1024	6.72 mm	72 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2013M-06S-RBN-YAG	1280 × 1024	6.72 mm	72 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2013M-16S-RBN	1280 × 1024	16 mm	45 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05H-RBN-SU	1280 × 1024	4.7 mm 2.45 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05N-RBN-SU	1280 × 1024	4.7 mm 2.45 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05H-RBN-S	1280 × 1024	4.7 mm 2.45 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05N-RBN-S	1280 × 1024	4.7 mm 2.45 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05-RBN-SU	1280 × 1024	4.7 mm 2.45 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05-RBP-SU	1280 × 1024	4.7 mm 2.45 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05-RBP-S	1280 × 1024	4.7 mm 2.45 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05-RBN-S	1280 × 1024	4.7 mm 2.45 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available
MV-ID2016M-25S-RBN	1408 × 1024	25 mm	45 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2016M-16S-RBN	1408 × 1024	16 mm	45 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2013M-25S-RBN	1280 × 1024	25 mm	45 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2016M-06T-RBP	1408 × 1024	6.7 mm	45 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2016M-06S-RBN	1408 × 1024	6.72 mm	68 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2016M-06S-BBN	1408 × 1024	6.72 mm	68 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2016M-06S-WBN	1408 × 1024	6.72 mm	68 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2016M-06S-RBN-U	1408 × 1024	6.72 mm	68 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2016M-06S-BBN-U	1408 × 1024	6.72 mm	68 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2016M-06S-WBN-U	1408 × 1024	6.72 mm	68 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2016M-10T-RBP	1408 × 1024	10 mm	45 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2016M-16T-RBN	1408 × 1024	16 mm	45 codes/sec	60.0 fps	CE, RoHS, KC	Available
MV-ID2013EM-05N-RBN	1280 × 1024	4.7 mm 2.45 mm	30 codes/sec	50.0 fps	CE, RoHS, KC	Available

Характеристики

Основные
Артикул	MV-ID2004M-06S-RBN
Производитель	Hikrobot
Гарантия	1 год
Проводное подключение	USB / RS232 (Serial, COM)
Сканирование 2D штрихкодов (ЕГАИС)	Да
Защищенный от падений корпус	Да
Цвет	Красный
Комплект поставки	Интерфейсный кабель / Подставка
Вес и габариты
Длина (мм)	212
Высота (мм)	110
Ширина (мм)	74
Вес (грамм)	330
